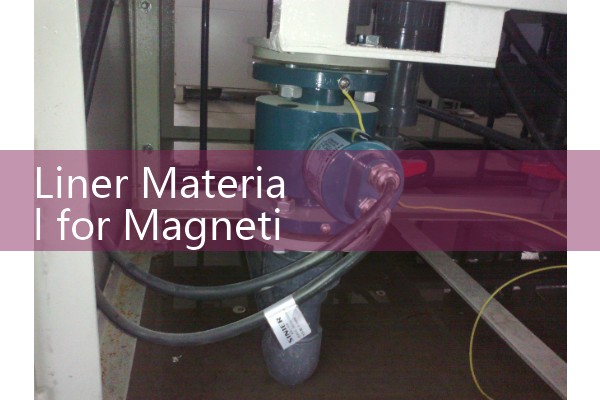

Liner Material for Magnetic Flow Meter Selection: Choosing PTFE, PFA, Rubber, or Neoprene
Quick Answer: PTFE and PFA liners suit aggressive acids, caustics, solvents, and high temperatures up to 150 degrees C. Rubber and neoprene liners cost less and handle water, wastewater, seawater, and light slurry up to about 70 degrees C. Match the liner to chemical concentration, temperature, solids content, and pipe size before you request a magnetic flow meter quote.
Why Liner Material Changes Magnetic Flow Meter Performance
The liner separates the process fluid from the metal tube. It also keeps the electrode signal stable. If the liner swells, cracks, or lifts, the meter reads high or drifts. We have seen this on customer sites many times. A failed liner often looks fine from the outside but destroys measurement accuracy.
Magnetic flow meters work with conductive liquids. The liner must be a good insulator. It must also resist your exact fluid mix at the operating temperature. A liner that works in water may fail in a solvent blend. Pressure spikes and abrasive solids add more stress on the liner.
PTFE Liners for Strong Acids and High Temperature
PTFE liner is the first choice for aggressive chemicals. It resists hydrochloric acid, sulfuric acid, nitric acid, sodium hydroxide, and many solvents. PTFE handles temperatures from about -20 to 150 degrees C depending on the meter design and flange rating. That range covers most chemical dosing and process lines.
PTFE has one weakness. It can absorb small amounts of chemical vapor at high temperature. This is called permeation. The liner may bubble or lift from the metal tube. We have seen this with hot acid lines above 110 degrees C. In those cases PFA is often the safer liner.
PTFE lined magnetic flow meters work well for chemical plants, water treatment with aggressive dosing chemicals, and scrubber lines. Pipe sizes normally start at DN10 or DN15 for PTFE lined magmeters. Silver Instruments supplies PTFE lined models for line sizes up to DN600 in many standard flange ratings.
PFA Liners for High Purity and Permeation Resistance
PFA is a fluoropolymer similar to PTFE. It resists almost the same chemical range but has a denser structure. This gives PFA better permeation resistance at elevated temperature. Many food and beverage plants also prefer PFA because it is smoother and easier to clean.
Here is the thing. PFA liner usually costs more than PTFE. But in hot solvent or high purity applications the higher price is often justified. Last year a customer in Vietnam asked us about a magnetic flow meter for a chemical dosing line with 30 percent hydrochloric acid at 90 degrees C. We recommended PFA liner because the temperature and concentration made PTFE more likely to lift over time.
Silver Automation Instruments recommends PFA for ultrapure water, hot demineralized water, pharmaceutical water, and food grade lines where CIP chemicals are present. Typical sizes range from DN15 to DN300. Send us your pressure (bar), temperature (°C), pipe size (DN), and flow range for a PFA liner recommendation.
Rubber Liners for Water Wastewater and Light Slurry
Rubber liners are the budget option for water and wastewater. Hard rubber resists abrasion from sand, sludge, and fine solids. Natural soft rubber works well in potable water lines and low temperature process water. Most rubber lined meters handle temperatures from 0 to 60 degrees C. Some hard rubber liners can run up to 70 or 80 degrees C for short periods.
Do not use rubber liners with oils, solvents, strong acids, or caustics. Rubber swells and loses bond strength. We see this with hydrocarbon contaminated wastewater. A refinery or chemical park often needs PTFE or PFA instead of rubber on lines that carry trace solvents.
Rubber lined magnetic flow meters suit municipal water, raw water intake, effluent, sludge transfer, and cooling water. They are common in DN25 to DN1200 pipe sizes. A water utility in Australia replaced an old mechanical meter with a DN100 rubber lined magmeter and solved a recurring blockage problem.
Neoprene Liners for Seawater and Oily Wastewater
Neoprene is a synthetic rubber. It handles seawater, brackish water, and some oily or greasy water better than natural rubber. Neoprene works well in desalination plants, ballast water lines, and port utility systems. Temperature range is similar to rubber, usually 0 to 70 degrees C.
For a seawater flow meter for desalination plant intake, we often recommend neoprene liner on a DN150 or DN200 magnetic flow meter. Neoprene resists salt attack and has decent abrasion resistance for sand particles in raw seawater. It is not a chemical liner. Do not use neoprene with solvents or concentrated acids.
Silver Instruments supplies neoprene lined electromagnetic flow meters for seawater, brine, and industrial wastewater. If your water contains oil film or light hydrocarbon traces, neoprene is often a better value than PTFE and safer than natural rubber.
How to Choose Liner Material by Fluid and Process
Start with three data points. Fluid name and concentration, operating temperature, and solids content. Then check the liner compatibility chart. In practice, most engineers skip the chart and ask the supplier to confirm. That is fine if you provide complete process data.
For clean water and raw water below 60 degrees C, rubber liner is enough. For seawater and brackish water, neoprene is the common choice. For acids, caustics, solvents, or any fluid above 80 degrees C, PTFE or PFA is normally required. For high purity or hot aggressive chemicals, PFA gives extra safety.
Pipe size also matters. Small meters from DN10 to DN25 often use PTFE or PFA because the liner must be molded to a small tube. Large water meters from DN300 to DN1200 commonly use rubber or neoprene because the liner cost is lower and the process conditions are usually mild.
Data to Send for a Magnetic Flow Meter Liner Quote
We can recommend a liner and exact model if you send fluid name, concentration, temperature, pressure, pipe size, and flow range. Include solids content and any cleaning procedure. For example, a paint and solvent plant in Southeast Asia sent us a list of 12 fluids. We mapped each line to PTFE, PFA, or rubber and quoted the correct magnetic flow meter for each line.
Most Silver Instruments magnetic flow meters include 4-20 mA HART output regardless of liner choice. Call Silver Instruments at +86-25-68650347. WhatsApp +86-25-52155837. WeChat +86 15365082610. Or send your process data through our website for a magnetic flow meter selection review.
FAQ on Magnetic Flow Meter Liner Selection
Is PTFE always the best magnetic flow meter liner?
No. PTFE is best for many aggressive chemicals but it may not be needed for water and wastewater. Rubber or neoprene costs less and works well below 70 degrees C. Choose based on the fluid and temperature, not on price alone.
Can I use rubber liner for seawater?
Natural rubber works in seawater for some lower temperature applications but neoprene is often the better liner for desalination plant intake and brine lines. Neoprene resists salt and oily water better. Check temperature and sand content before you decide.
What liner should I choose for food and beverage process lines?
PFA liner is common for food grade and high purity water lines because it is smooth, cleanable, and resistant to CIP chemicals. PTFE also works for many food applications. Confirm the liner meets your local food contact standards for the specific temperature and cleaning agent.
What is the maximum temperature for rubber lined magnetic flow meters?
Most rubber liners are rated from 0 to 60 degrees C. Some hard rubber grades can handle 70 or 80 degrees C for short periods. If your process runs above 80 degrees C, PTFE or PFA is required.
How do I get a magnetic flow meter quote with the right liner?
Send us your fluid name, concentration, temperature (degrees C), pressure (bar), pipe size (DN), and flow range. Also include solids content and cleaning method. Silver Instruments will recommend the liner and send a model price.
