Flow Meter Working Theory: How Different Technologies Track Volumetric and Mass Fluid Speeds
Quick Answer: Flow meters measure volume or mass. Volumetric technologies count fluid volume per time. Mass technologies measure actual fluid mass independent of pressure and temperature. Silver Automation Instruments supplies both types for water, gas, chemicals, food, and marine processes.
Different flow meter types use different physical principles. Some suit conductive water and wastewater. Some handle diesel fuel and lube oil. A few styles measure gas and steam. The best choice depends on fluid name, pipe size, flow range, pressure, and temperature. In practice, the working theory decides if the meter will survive the process. Most engineers skip this part. That creates problems later.
Volumetric Flow Meters: Principles and Typical Uses
Electromagnetic flow meters use Faraday law of induction. They measure the voltage created by a conductive liquid moving through a magnetic field. They need a minimum fluid conductivity of 5 µS/cm. They do not work for pure water, oils, or gases. They are a top choice for raw water, wastewater, sludge, and chemical dosing. Sizes range from DN15 to DN2000. Silver Automation Instruments offers electromagnetic flow meters with 4-20 mA HART output, Modbus, PTFE liners, and stainless steel electrodes. A water utility in Vietnam installed a DN300 electromagnetic meter on a desalination plant intake line. Flow range was 0 to 500 m3/h.
Ultrasonic flow meters measure volumetric flow by transit time or Doppler shift. Clamp on models mount outside the pipe. They do not contact the fluid. They work well on large pipes where cutting the line is expensive. Accuracy is often around 1 percent of reading for transit time types. A food plant in Indonesia uses a clamp on ultrasonic meter on an 80 mm CIP return line at 85 °C. The meter sends a 4-20 mA signal to the plant PLC.
Vortex flow meters measure volumetric flow by counting vortices shed behind a bluff body. They suit steam, gas, and clean liquids. They often include a built in PT100 temperature sensor for saturated steam mass flow calculation. A chemical distributor in Malaysia uses vortex meters on 50 mm steam headers. The meters handle 8 barg steam and send pulse outputs to a totalizer.
Oval gear flow meters measure small volumes by counting fixed gear pockets. They handle diesel, lube oil, and viscous liquids up to 1000 cP. They are common on fuel oil skids and generator consumption lines. A customer in Saudi Arabia uses oval gear meters for diesel generator monitoring at 20 to 200 L/h. The meters have pulse output and a local totalizer.
Mass Flow Meters: Direct Mass Measurement Without Compensation

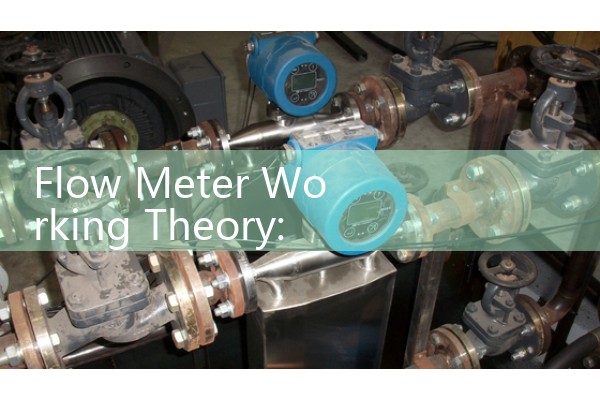

Coriolis mass flow meters measure mass directly through tube vibration and phase shift. They also measure density and temperature. They work on most liquids and gases. Accuracy is often 0.1 to 0.2 percent of rate. They do not need pressure or temperature compensation. Sizes from DN3 to DN150 are typical. Silver Instruments offers Coriolis mass flow meters with stainless steel 316L wetted parts
_600x400.jpg)
Thermal mass flow meters measure gas mass flow by heat dissipation. They suit air, natural gas, biogas, and flare gas. They need a clean and dry gas stream. They have no moving parts. Accuracy is about 1 to 2 percent of full scale. A wastewater plant in the Philippines uses one for digester gas monitoring. The meter provides a 4-20 mA signal proportional to mass flow.
How to Select Between Volumetric and Mass Flow Meter Technology
Start with the process data. Write down fluid name, viscosity, conductivity, flow range, pipe size, pressure, and temperature. For water and wastewater, electromagnetic is often the first choice. For gas and steam, vortex or thermal mass. For high value liquids or custody transfer, Coriolis is hard to beat. For diesel fuel or lube oil, oval gear gives a simple and robust result.
Most engineers skip this part. They only ask for a price. But a flow meter is not a commodity. Wrong selection causes measurement errors and downtime. We have seen this on customer sites many times. A low cost turbine meter installed on a slurry line will fail within weeks. A thermal mass meter on wet gas will drift. The process data matters more than the purchase price.
Application Examples and Recommended Models
For wastewater discharge, use an electromagnetic flow meter with 4-20 mA HART and a PTFE liner. For boiler fuel oil, use an oval gear meter with pulse output. For saturated steam, use a vortex meter with integrated pressure and PT100 temperature compensation. For batching of syrups, pastes, or high value chemicals, use a Coriolis mass flow meter with density output. For compressed air and biogas, use a thermal mass flow meter.
FAQ
What is the difference between volumetric and mass flow measurement? Volumetric flow measures volume per time. Mass flow measures weight per time. Volume changes with pressure and temperature. Mass does not.
Which flow meter is best for wastewater? Electromagnetic flow meters are most common. They need conductivity above 5 µS/cm and a full pipe. For open channels, ultrasonic or radar may fit better.
Can one flow meter measure both liquid and gas? Some Coriolis meters can measure both. But sizing differs. Share your process data before ordering. Do not assume one size fits both phases.
What pressure drop should I expect? Coriolis meters can have 0.1 to 1 bar pressure drop. Oval gear also has some drop. Electromagnetic has almost no pressure loss. Vortex and thermal meters have small but measurable losses.
How do I get a price from Silver Automation Instruments? Send us your fluid type, pressure in bar, temperature in °C, pipe size in DN, and flow range. We reply within 24 hours.
