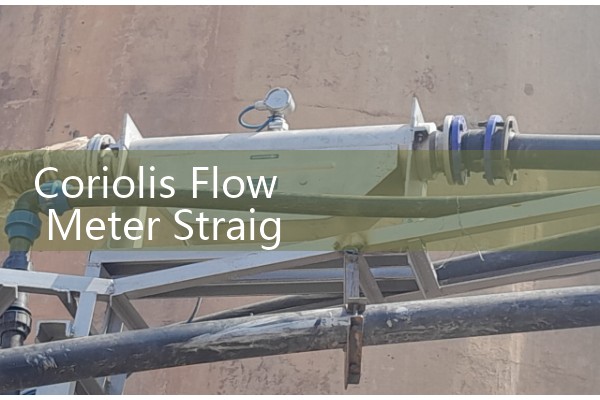

Coriolis Flow Meter Straight Run Requirements: Minimal Space Pipe Sizing
Quick Answer: Coriolis mass flow meters do not need long straight pipe runs in most liquid and gas applications. A straight run of 0 to 3 pipe diameters is usually enough because the meter measures mass flow directly. This allows compact pipe sizing for skids, pump discharge lines, and offshore installations.
Many process engineers ask about straight run requirements before they replace a turbine flow meter or an orifice plate. The old technology often needed 10D upstream and 5D downstream. With a Coriolis meter from Silver Automation Instruments, that space requirement drops sharply. We have supplied meters to customers in Vietnam, Saudi Arabia, and Chile where existing pipe racks left no room for a flow conditioner.
Here is the thing. A Coriolis meter does not care about a fully developed velocity profile. It uses two vibrating tubes and a phase shift measurement. The phase shift is proportional to mass flow. Because the meter is not sampling a single point velocity or a differential pressure, swirl and turbulence have a small effect on accuracy.
Straight Run Numbers You Can Use in a Pipe Sizing Review
For most liquid services, use 0D upstream and 0D downstream. That means you can mount a DN15 Coriolis meter directly after an elbow or a pump. For gas service above 10 bar, we suggest 2D to 3D upstream if heavy pulsation or wet gas is present. This is not a hard rule from physics. It is a practical buffer from field experience.
Some skid builders ask about minimal spacing between the meter and a control valve. A control valve creates high velocity jets and gas breakout. We recommend placing the Coriolis meter upstream of the control valve when possible. If the meter must sit downstream, allow 3D to 5D of straight pipe after the valve. This reduces cavitation noise and keeps the meter stable.
Compact Pipe Sizing for Tight Process Areas
A customer in a paint manufacturing plant in Southeast Asia replaced two positive displacement meters with one DN15 Coriolis meter. The available straight run was only 80 mm between an elbow and a filling nozzle. The meter fit without a flow straightener. Batch accuracy stayed within 0.2 percent after commissioning.
Another project in a desalination plant in the Middle East used a DN50 Coriolis meter on a high pressure brine line. The pipe rack allowed only 150 mm of straight run before a reducer. The meter measured brine flow at 120 bar and 38 degrees Celsius with stable 4 to 20 mA HART output. No zero shift occurred after startup.
For minimal space pipe sizing, select a compact Coriolis meter with an integral transmitter. Silver Instruments offers DN15 to DN200 sizes with 316L stainless steel tubes and PT100 temperature sensors built into the flow tube. This cuts total installation length to about 300 mm for a DN15 meter.
When to Add a Short Straight Run
Most engineers skip this part for clean liquids. But add 2D to 3D
For slurry or abrasive service, a straight run of 0D is still acceptable. The tubes are self draining in horizontal installation. We have seen a magnetic flow meter fail on a mining slurry line because of electrode coating. The replacement Coriolis meter from Silver Automation Instruments needed no straight run and no grounding rings.
In gas service with pressure below 5 bar, watch for low density and low flow velocities. A DN80 Coriolis meter measuring 0 to 2000 kg/h at 4 bar may show unstable readings if mounted after an elbow. In this case, a 3D upstream straight run helps to settle the flow before the meter.
Model Selection and Sizing Inputs
To get a quote, send us your pressure in bar, temperature in Celsius, pipe size in DN, and flow range in kg/h or t/h. Also tell us the fluid viscosity in cP and conductivity in µS/cm if you have it. We will recommend a Coriolis meter model and confirm the exact straight run for your piping layout. Silver Instruments offers ATEX Zone 1 and IECEx certified models for gas and dust environments.
Contact Silver Automation Instruments for Coriolis meter selection and price. Call +86-25-68650347 or use WhatsApp +86-25-52155837. WeChat is +86 15365082610. Our team can review your piping drawing and mark the shortest possible straight run for a Coriolis meter.
FAQ: Coriolis Straight Run and Minimal Space Pipe Sizing
Does a Coriolis flow meter need straight run upstream?
In most liquid applications, no straight run is required. You can install the meter directly after an elbow, tee, or pump. For gas or two phase flow, 2D to 3D upstream may improve stability.
What is the minimum straight run for a DN15 Coriolis meter?
A DN15 Coriolis meter can operate with 0D straight run. The total face to face length is often below 300 mm. This makes it suitable for filling machines and compact skids.
Can a Coriolis meter be installed after a control valve?
Yes, but we recommend placing the meter upstream of the control valve. If you must install it downstream, keep 3D to 5D of straight pipe after the valve to reduce cavitation and noise.
Does straight run affect Coriolis meter accuracy?
Straight run has a small effect on Coriolis meter accuracy compared to turbine or orifice meters. The meter measures mass flow through tube vibration, so velocity profile changes cause less than 0.1 percent error in most cases.
What details do you need for a Coriolis meter quote?
Send us your pressure in bar, temperature in Celsius, pipe size in DN, and flow range in kg/h. We also need fluid viscosity in cP for high viscosity applications. Contact Silver Automation Instruments by phone or WhatsApp for a same day review.
