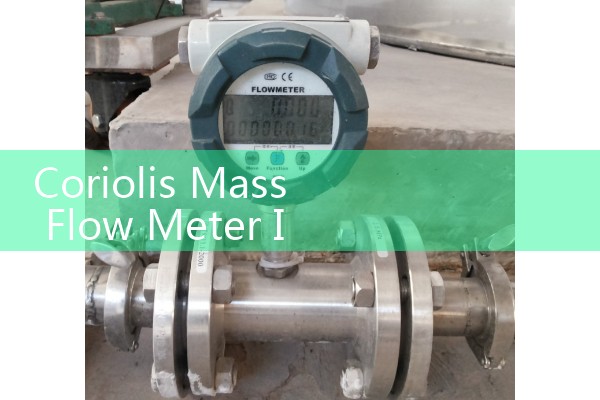

Coriolis Mass Flow Meter Installation Requirements: Zero Point Stability Rules
Quick Answer: Zero point stability for a Coriolis mass flow meter starts with pipe support, flange alignment, and temperature stability. A poorly supported meter will drift at zero flow even if the sensor and transmitter are healthy. Install the meter with full pipe supports, align the flanges without force, and run a zero calibration at process temperature before production starts.
Why Zero Point Stability Controls Installation Quality
Coriolis meters measure mass flow directly. The meter detects phase shift between two vibrating tubes. At zero flow the phase shift should be zero. But mechanical stress on the sensor body changes the tube vibration. This stress appears as a small offset or zero drift.
In practice most zero point failures on new sites are not electronic failures. They are pipe stress problems. A water treatment plant in Vietnam had a DN50 Coriolis meter that showed 12 kg/h with the pump off. The root cause was a pipe flange that had been pulled into alignment with a chain block. After the pipe support was corrected the meter returned to 0.04 kg/h.
Pipe Support and Alignment Rules
Support the pipe on both sides of the meter within 5 pipe diameters. For DN50 use supports within 250 mm to 300 mm from the process connections. The meter body must not act as a pipe support. Do not hang valves, actuators, or filters on the meter.
Align the upstream and downstream flanges before you insert the meter. Bolt tension must be even. A common mistake is to pull the flanges together with long bolts. That twisting force creates a zero point offset that cannot be calibrated away.
Installation Orientation and Flow Direction
Liquid service: install the meter with the flow tubes down or horizontal. The meter must stay full. Do not install a liquid meter at the highest point of a line where gas pockets can collect.
Gas service: the tubes should face upward so condensate drains away. Slurry or high viscosity service: keep the meter vertical with upward flow if possible. That keeps solids from settling inside the tubes. For a palm oil plant in Indonesia with 800 cP fluid, a vertical installation with upward flow reduced zero point drift after shutdowns.
Vibration, Pulsation, and External Stress
External vibration from pumps or compressors can disturb the tube frequency. Install the meter away from reciprocating pumps. For piston pumps use a pulsation damper upstream. If the line vibrates, add pipe supports and rubber lined clamps on both sides.
We have seen this on customer sites many times. A diesel loading skid in Thailand had a Coriolis meter mounted directly next to a piston pump. The meter zero point moved every time the pump stroke changed. Moving the meter 4 meters downstream solved the issue without changing the sensor.
Temperature and Pressure Effects on Zero Point
Process temperature changes the tube stiffness. A zero calibration at room temperature will not match a meter running at 140 °C. Wait for the meter to reach stable process temperature before the zero check. For high temperature service use insulation on the meter body and the adjacent pipe. Do not insulate the transmitter.
Pressure changes are less critical but still matter on gas lines above 20 bar. If the operating pressure varies more than 10 bar, repeat the zero point check at normal operating pressure. For a chemical batch
Zero Point Calibration Procedure
Perform zero calibration after the meter is installed, wired, and filled with process fluid at zero flow. Close the downstream isolation valve. Allow the fluid temperature to stabilize for at least 15 minutes for small lines and up to 1 hour for DN80 and larger. Make sure no bubbles are present. Then start the zero calibration from the transmitter menu or a HART handheld.
After the zero routine finishes, check the live zero point value. A good value is typically below 0.05 percent of full scale for DN15 to DN50 in liquid service. For larger meters the acceptable value depends on the model and process conditions. Record the value. Repeat the check after the first week of production.
Recommended Silver Instruments Models and Key Parameters
Silver Instruments supplies the SIL-CMF series from DN15 to DN150 with 316L stainless steel or Alloy C22 wetted parts. The standard transmitter includes 4-20 mA HART, pulse output, and PT100 temperature measurement. Models are available for ATEX Zone 1 and Zone 2 gas or dust areas.
For small batch dosing in food or chemical lines, choose the SIL-CMF-DN15 or SIL-CMF-DN25 model. These meters handle flow ranges from 0.1 kg/h to 500 kg/h. For bunker fuel or crude oil transfer in marine service, select the SIL-CMF-DN80 or SIL-CMF-DN100 model. For desalination plant brine lines, request a Super Duplex wetted parts version.
A typical DN50 model for a chemical plant in Australia was set to 0 to 2000 kg/h. After installation with correct pipe supports, the zero point stability was better than 0.04 percent full scale. The customer used the pulse output for a batch controller and the 4-20 mA HART signal for the control room.
FAQ
Why does my Coriolis meter show a nonzero flow when the line is empty or blocked?
This is usually a zero point offset caused by pipe stress, vibration, or trapped gas. Check the supports, release flange stress, and fill the meter completely before judging the sensor.
How often should zero point calibration be done?
At commissioning, after any piping change, and after large temperature shifts. For custody transfer or high accuracy batching, many plants repeat the zero check every 3 to 6 months.
What is the best orientation for liquid, gas, and slurry?
Liquid: tubes down or horizontal. Gas: tubes up. Slurry: vertical with upward flow. The goal is to keep the tubes full and free of deposits or bubbles.
Can vibration from a pump cause zero point drift?
Yes. Reciprocating pumps and unbalanced motors are common sources. Move the meter away from the source or add dampers and clamped pipe supports.
What details should I send for a Coriolis mass flow meter installation check or quote?
Send your pressure in bar, temperature in °C, pipe size in DN, flow range in kg/h, fluid name, and viscosity in cP. Also include the hazardous area classification if needed.
