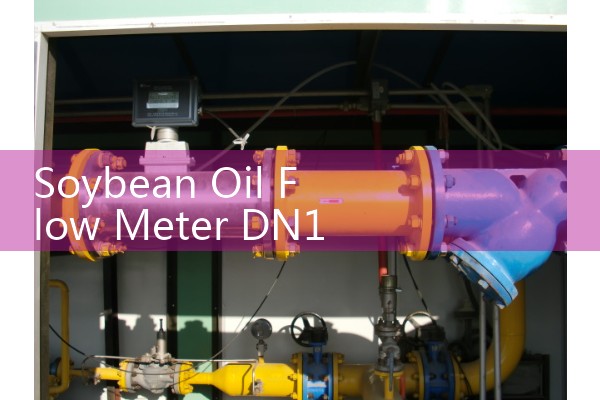

Soybean Oil Flow Meter DN100: Industrial Storage Tank Manifold Setup Guides
Quick Answer
For soybean oil flowing out of bulk storage tanks, a positive displacement oval gear flow meter DN100 gives you the highest accuracy with viscous fluids. Coriolis mass flow meters also fit this application if you need mass totalizing and real-time density checks. Silver Automation Instruments supplies both types in food-grade 316L stainless steel with direct local support across Southeast Asia, Oceania, and the Middle East.
Why DN100 Fits Most Edible Oil Tank Manifolds
Industrial soybean oil storage facilities often handle batch transfers between 20 m3/h and 60 m3/h. A DN100 (4 inch) meter sits right in that flow range without creating an excessive pressure drop. The meter body matches standard Schedule 10S or 40S pipes used in food plants. Typical soybean oil viscosity at 30 deg C is 40 to 50 cP. That puts the fluid in the sweet spot for oval gear meters because the gears trap a fixed volume and stay accurate even as viscosity shifts slightly with temperature.
Oval Gear vs. Coriolis on a Soybean Oil Manifold
In practice, most tank farm supervisors pick an oval gear meter for simple net volume. The meter gives you a pulse output and a local mechanical totalizer, no external power needed. If you want mass readout and density trending, you move to a Coriolis meter. A food processor in Thailand ran a DN100 Coriolis meter on their refined soybean oil manifold. They wanted mass in kg per batch, not litres. With a Coriolis you also catch density swings that might flag a blending error or water carryover. Both meter types from Silver Instruments come with 4-20 mA HART, pulse, and RS485 Modbus outputs. You can feed that directly into a paperless recorder or a PLC inside the manifold control panel.
Specific Setup Steps for a Tank Manifold
Always place a 60 mesh Y-strainer upstream of the meter, even if the oil looks clean. Soybean oil often carries fine meal particles from extraction. Those particles can scratch oval gears or jam a Coriolis tube. Install a small air eliminator or a sight glass before the meter. During tank switching, air slugs get into the lines. An oval gear meter will over-register if air passes through. A Coriolis will also show a density drop, but you want to stop the batch when that happens. Keep the meter full of oil at all times. Mount the meter in a bottom-drain section of the manifold or on a vertical riser. Do not put the meter at the highest point of the pipe run. Many engineers skip this part until they lose a batch total. We have seen this on customer sites in Vietnam and Peru where air pockets caused a 3% to 5% measurement drift.
Temperature and Pressure Compensation
Soybean oil density changes by roughly 0.00064 g per cm3 for every 1 deg C shift. A 10 deg C swing alters volume by about 0.7%. That may not matter in simple inventory, but in custody transfer you need correction. Silver Instruments oval gear meters accept a PT100 input directly. Add a pressure transmitter with 4-20 mA output on the manifold header. Then feed all signals into our XSR series paperless recorder. The recorder does automatic volume correction to base conditions. For ATEX Zone 1 areas, we configure the system with intrinsically safe barriers and Ex d enclosures. Most soybean oil plants in Africa and Latin America request IE
Real Manifold Piping Constraints
In a tight manifold you often lack the textbook straight pipe runs. Oval gear meters do not need long straight lengths the way turbine meters do. Three pipe diameters upstream and two downstream usually keep accuracy within plus minus 0.2%. If the manifold has a modulating valve that changes flow slowly, put that valve downstream of the meter. Never throttle flow just before the meter inlet. That creates jetting and swirl that throws off the reading. A lubricant blending plant in Malaysia used a DN100 oval gear meter right after a 90-degree bend. They still met their 0.5% totalizer target because the oval gear design is largely immune to velocity profile distortion.
Typical Silver Instruments Models for This Job
The SIL-OG-SS DN100 oval gear meter handles 4 to 80 m3/h with a standard accuracy of plus minus 0.2%. Wetted parts are 316L stainless steel with PEEK gears and Viton O-rings. Maximum pressure rating is 40 bar. It comes with a dual-channel pulse output and optional 4-20 mA. If you choose Coriolis, the SIL-CMF025-DN100 model measures mass flow up to 80,000 kg/h with density and temperature built in. Both meters work with our XSR90 paperless recorder for batch logging and alarm outputs. These three items form a complete manifold measurement skid that you can order as a pre-wired panel, saving field wiring time.
How to Order and Get a Quote
Send us your soybean oil temperature (deg C), operating pressure (bar), pipe size (DN), and typical flow range in m3/h or kg/h. Also tell us your power supply preference, 24 V DC or 220 V AC, and whether you need ATEX or IECEx. We will return a quotation with a dimensional drawing and I/O wiring diagram within one working day. Contact Silver Instruments directly: Email [email protected], Tel +86-135-1213-1526, Whatsapp 86-135-12131526, or WeChat +86 13512131526. You can also visit our site at flow-meter.com.au and open a live chat.
Frequently Asked Questions
What flow meter type handles soybean oil best at DN100?
Oval gear positive displacement meters offer the best price-to-accuracy ratio for viscous edible oils. Coriolis meters add mass and density measurements when you need them.
Do I need temperature compensation on a tank manifold?
For simple inventory, many sites skip it. For batch sales or inter-site transfer, use a PT100 and a paperless recorder to correct volume to a standard temperature of 15 deg C or 20 deg C.
Can I install the meter straight after a pump discharge?
Yes, but install a pulsation dampener or a small air chamber if the pump is a positive displacement type. Centrifugal pumps are less critical. Always keep the meter flooded and avoid suction-side mounting.
What signal outputs do Silver Instruments soybean oil meters provide?
Our standard meters offer pulse, 4-20 mA HART, and RS485 Modbus RTU. This lets you connect to a local batch controller, SCADA, or our XSR paperless recorder without extra signal converters.
How can I stop air in the oil from ruining batch totals?
Add a mechanical air eliminator right before the meter inlet. On a manifold that switches tanks often, also install a low-point drain valve and a sight glass so operators can vent air manually before starting a batch.
